The VIP Vision Access Control Battery Backup Cabinet is a durable enclosure designed to securely house, monitor and provide backup power to the AC-WCM web controller in AC-W Series Professional Access Control.

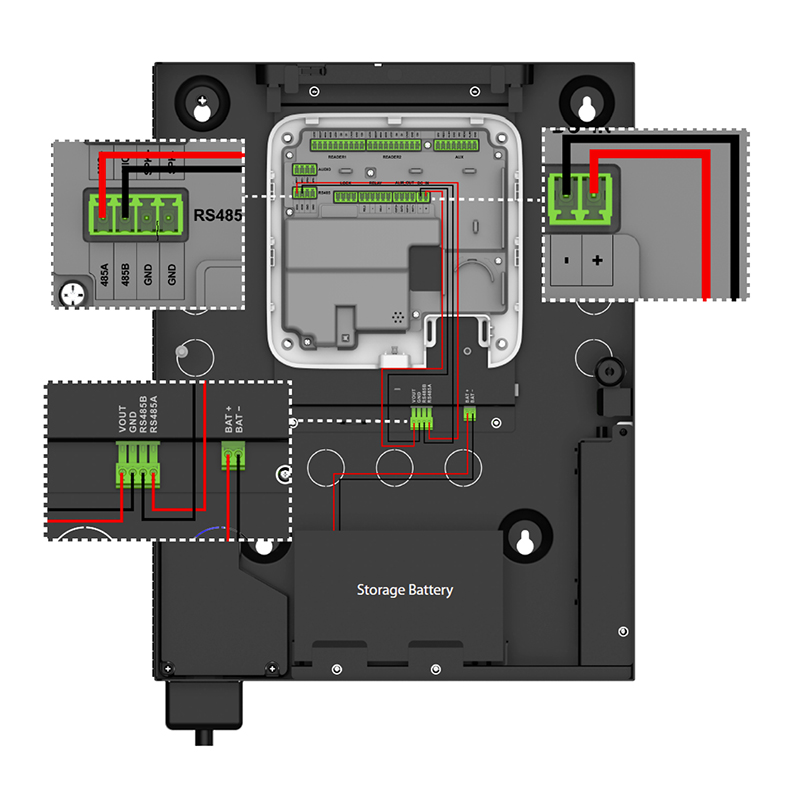

The cabinet connects to the controller via RS-485 to report monitored events of the cabinet, including mains power loss, mains power recovery and tamper events. The cabinet also features an air circuit breaker for overload and short circuit protection.

• Galvanised steel cabinet construction with door lock
• Supports standard 12VDC 7A battery* for backup power
• Monitoring of main power loss, main power recovery, tamper (via RS-485 extension)
• Built-in air circuit breaker for overload and short-circuit protection
• 240VAC power input with 15VDC 4A output
• Surface-mount design with simple wall installation
*12VDC 7A backup battery not included
