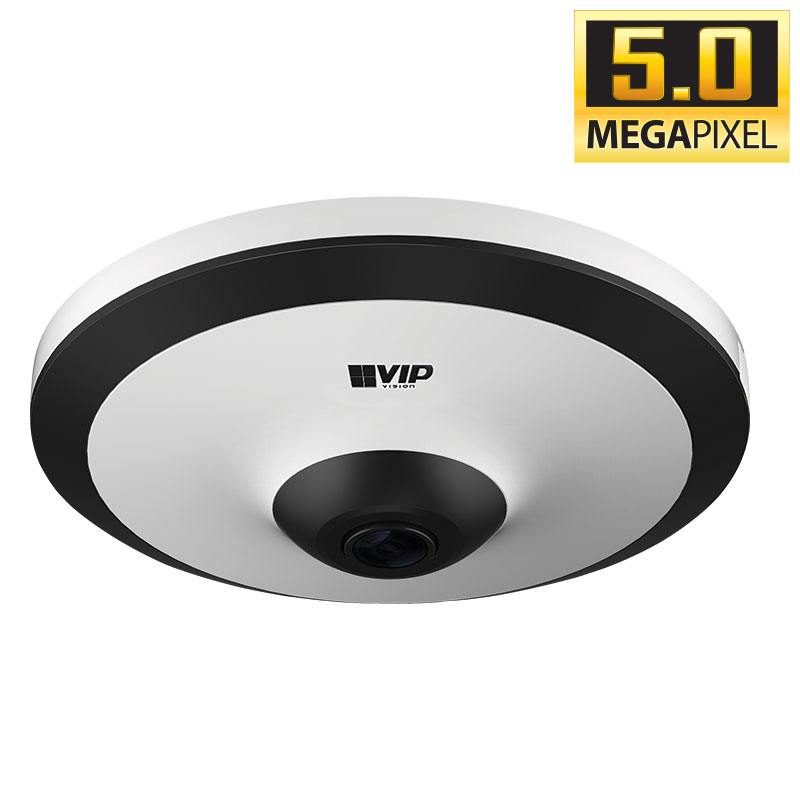

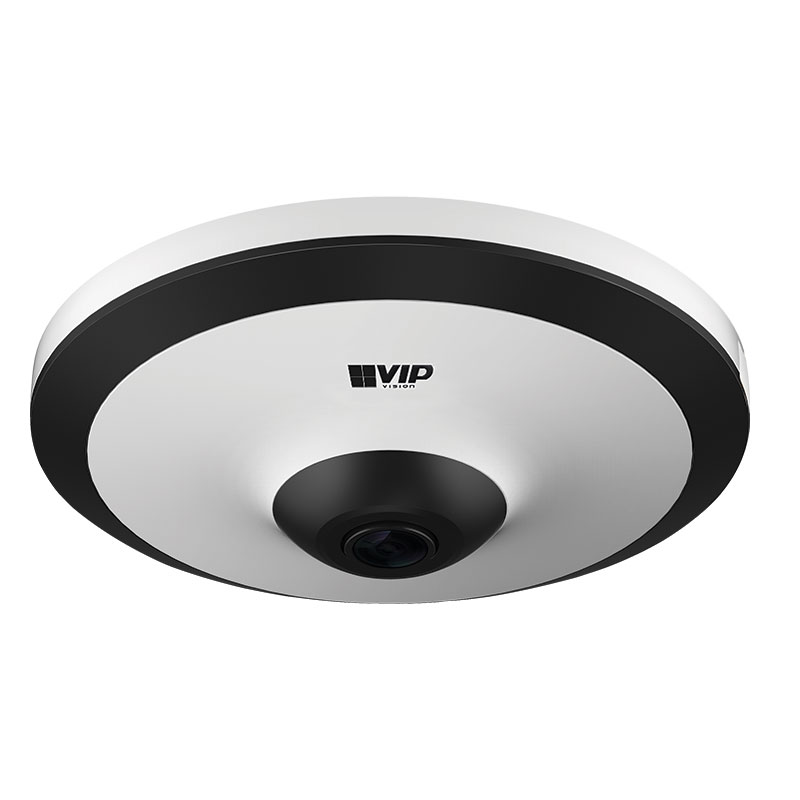

Fisheye Series 5.0MP 360° Fisheye Dome
Model: VSIPFE-5IR

Overview

Designed to perform the duties of multiple cameras, the VSIPFE-5IR fisheye dome transforms your surveillance experience through panoramic and virtual PTZ modes. This compact camera grants the benefit of 360° field of view and has advanced IVS functions including heat map.

Camera features:
• Stream up to 5.0MP (2592 x 1944) at 25fps
• 1.4mm F2.0 circular fisheye lens with 180° (H/V/D) viewing angle
• Multiple fisheye image dewarp modes
• Up to 10m infrared range: true day/night (auto ICR)
• Efficient H.265+ video compression technology
• Intelligent video functions, including motion detection & heat map
• Auto digital day/night & 3D digital noise reduction
• True WDR (120dB) & back/highlight compensation
• MicroSD card slot for at-the-edge recording, up to 128GB
• Power via 12VDC or Power over Ethernet
Specifications
Alarm Interface 1 Input (5mA 5VDC), 1 Output (300mA 12VDC)
Audio Interface 1 Input (Built-in microphone), 1 Output / Compression: G.711a/G.711Mu/PCM
Bit Rate H.265: 3 ~ 40960Kbps / H.264: 3 ~ 40960Kbps
Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR)
Camera Type Fisheye Dome
Day/Night Auto (ICR) / Color / B&W
Detect (25px/m) 28m
Dimensions Ø126.2mm x 44.7mm
Edge Storage MicroSD Card (up to 128GB) / NAS / Local PC
Effective Pixels 2592 (H) x 1944 (V)
ePoE No
Ethernet RJ-45 (100/1000 Base-T)
Field of View Horizontal: 180°, Vertical: 180°
Focus Fixed
Frame Rate (Main) 5.0MP (1~25fps)
Frame Rate (Sub) D1 (1 ~ 25fps)
Frame Rate (Third) D1 (1 ~ 10fps)
Gain Control Auto / Manual
Housing Metal + Plastic
Identify (250px/m) 3m
Image Sensor 1/2.7’’ 5.0MP Progressive Scan CMOS
Infrared Yes
Infrared System 3 x Infrared LED, 10m range, Auto/manual on/off control
Ingress Protection N/A
Intelligent Functions Tripwire, Intrusion, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Heat Map
Interoperability ONVIF / API / CGI
IVS Yes
Lens / Iris 1.4mm F2.0 Fixed Circular Fisheye Lens
Lens Type Fixed
Lighting Compensation BLC / HLC / True WDR (120dB)
Max. Resolution 5.0 Megapixel
Max. User Access 10 / 20 Users
Min Illumination Colour: 0.006lx (F2.0,1/3s) 0.02lx (F2.0, 1/30s), 0lx (F2.0, IR on)
Net Weight 0.28kg
Noise Reduction 3D DNR
Observe (63px/m) 11m
Operating Conditions -10° ~ +50° C / Less than 95% RH
Pan/Tilt/Rotation N/A
Picture Control Multiple Dewarp Modes
Power Consumption 12VDC: <2.7W (<8.2W IR on) / PoE: <3.3W (<10W IR on)
Power Supply 12VDC / PoE (802.3af)
Protocol HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; RTMP
RAM / ROM 512MB / 32MB
Recognise (125px/m) 6m
Resolution 5.0MP (2592 x 1944) to CIF (352 x 288)
RS485 N/A
RTMP Support No
S/N Ratio N/A
Series Fisheye Series
Streaming Method Unicast / Multicast
Tri-Axis Mounting No
Ultra Low Light Colour No
Vandal Resistance N/A
Video Compression H.265+ / H.265 / H.264+ / H.264 / H.264H / MJPED (Sub Stream)
Video Interface N/A
Weather Resistance N/A
White Balance Auto / Natural / Street Lamp / Outdoor / Manual
Warranty (Years) 4
