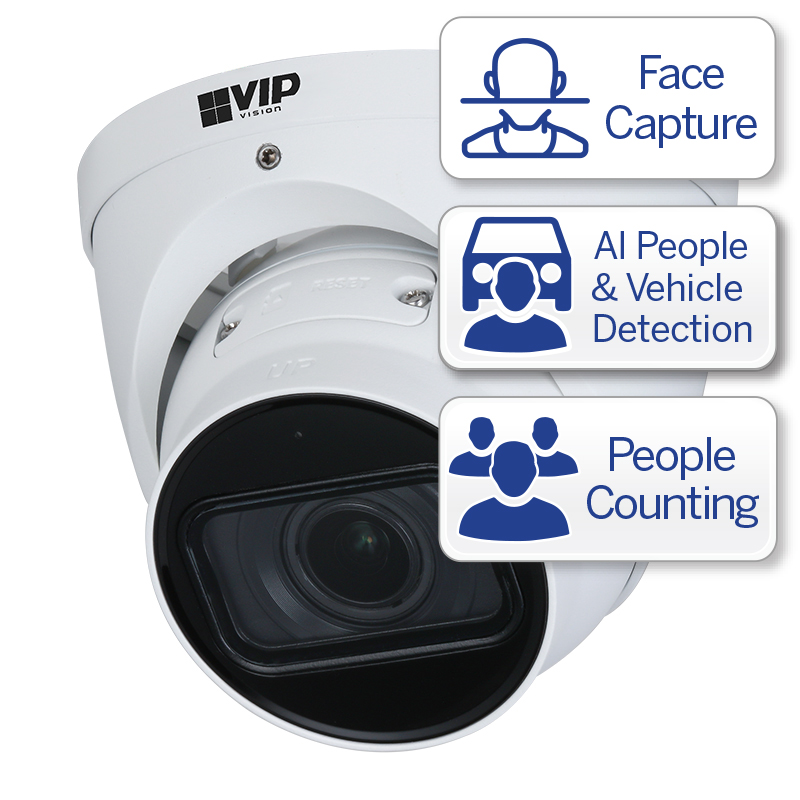

Ultimate AI Series 4.0MP Motorised Turret
Model:VSIPU-4DIRMG-I
Overview
The Ultimate AI Series detects and captures faces from footage using machine-learned algorithms, preparing face data for use with an AI NVR face database. This enables up to 16 channels of face recognition. The series also features intelligent perimeter protection and people counting to provide meaningful video event notifications in real-time.
Camera features:
• Stream up to 4.0MP (2688 x 1520) at 25fps
• 2.7 ~ 12mm motorised lens with 114 ~ 47° viewing angles
• H.265 encoding for efficient storage & streaming
• 40m infrared range; true day/night (auto ICR)
• Back/highlight compensation & true WDR (140dB)
• MicroSD slot for recording at the edge up to 256GB
• Internal face detection & capture to extend recognition
• Perimeter Protection to identify people & vehicles
• Combine Perimeter Protection with Tripwire/Intrusion to prevent false alarms with any VIP Vision NVR
• Intelligent AI-enhanced people counting for retail capacity management and flow control
• Extend PoE up to 800m (requires ePoE NVR/switch)
• IP67 weather rated
Camera features:
• Stream up to 4.0MP (2688 x 1520) at 25fps
• 2.7 ~ 12mm motorised lens with 114 ~ 47° viewing angles
• H.265 encoding for efficient storage & streaming
• 40m infrared range; true day/night (auto ICR)
• Back/highlight compensation & true WDR (140dB)
• MicroSD slot for recording at the edge up to 256GB
• Internal face detection & capture to extend recognition
• Perimeter Protection to identify people & vehicles
• Combine Perimeter Protection with Tripwire/Intrusion to prevent false alarms with any VIP Vision NVR
• Intelligent AI-enhanced people counting for retail capacity management and flow control
• Extend PoE up to 800m (requires ePoE NVR/switch)
• IP67 weather rated
| Specifications | |
|---|---|
| Alarm Interface | N/A |
| Audio Interface | Built in MIC/ Audio Compression - PCM; G.711a; G.711Mu; G.726; G.723 |
| Bit Rate | H.264: 32Kbps ~ 8192Kbps / H.265: 19Kbps ~ 8192Kbps |
| Bit Rate Control | Constant bit rate (CBR) / Variable bit rate (VBR) |
| Camera Type | Turret |
| Category | Network Surveillance |
| Day/Night | Auto (ICR) / Color / B&W |
| Detect (25px/m) | 58m (wide) / 131m (tele) |
| Dimensions | Ø122mm x 108mm |
| Edge Storage | MicroSD Card (up to 256GB) / NAS / FTP /SFTP |
| Effective Pixels | 2688 (H) x 1520 (V) |
| ePoE | Yes |
| Ethernet | RJ-45 (10/100Base-T) |
| Event Trigger | Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly |
| Face Attributes | Age, Gender, Expression, Glasses, Face Mask, Facial Hair |
| Face Detection | Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR (16 total) |
| Field of View | Horizontal: 114°~47°, Vertical: 62°~26° |
| Focus | Auto Focus / 1.2m Min. Focus Distance |
| Frame Rate (Main) | 4.0MP (1 ~ 25fps) / 2.0MP (1 ~ 50fps) |
| Frame Rate (Sub) | D1 (1 ~ 50fps) |
| Frame Rate (Third) | 1080p (1 ~ 25fps) |
| Gain Control | Auto / Manual |
| Heat Map | Yes |
| Housing | Metal, Plastic |
| Identify (250px/m) | 6m (wide) / 13m (tele) |
| Image Sensor | 1/1.8’’ 4.0MP Progressive Scan CMOS |
| Infrared System | 2 x Infrared LED, 40m range, Auto/manual on/off control |
| Ingress Protection | IP67 |
| Intelligent Functions | Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object |
| Intelligent Search | Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes |
| Interoperability | ONVIF / P2P / CGI / Milestone / Genetec |
| Lens / Iris | 2.7 ~ 12.0mm F1.8 Motorised Varifocal Lens with Auto Iris |
| Lens Type | Motorised Varifocal |
| Lighting Compensation | BLC / HLC / WDR (140dB) |
| Max. Resolution | 4.0 Megapixel |
| Max. User Access | 20 Users |
| Min Illumination | 0.003 Lux / F1.8 (Color) |
| Net Weight | 0.74kg |
| Noise Reduction | 3D DNR |
| Observe (63px/m) | 23m (wide) / 52m (tele) |
| Operating Conditions | -30°C ~ +60°C, ≤95% RH |
| Pan/Tilt/Rotation | Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360° |
| People Counting | Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection |
| Perimeter Protection | Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection |
| Picture Control | Mirror / Flip (0°, 90°, 180°, 270°) |
| Power Consumption | <6.9W |
| Power Supply | 12V DC (±30%)/PoE (802.3af)/ePoE |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| RAM / ROM | 1GB / 128MB |
| Recognise (125px/m) | 12m (wide) / 26m (tele) |
| Resolution | 4.0MP (2688 x 1520) to CIF (352 x 288) |
| RS485 | N/A |
| S/N Ratio | > 56dB |
| Series | Ultimate AI Series |
| Smart Scene Adaptive (SSA) | No |
| Streaming Method | Unicast / Multicast |
| Vandal Resistance | N/A |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 / H.264B / H.264H / MJPEG |
| Video Interface | N/A |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
| Warranty (Years) | 4 |
