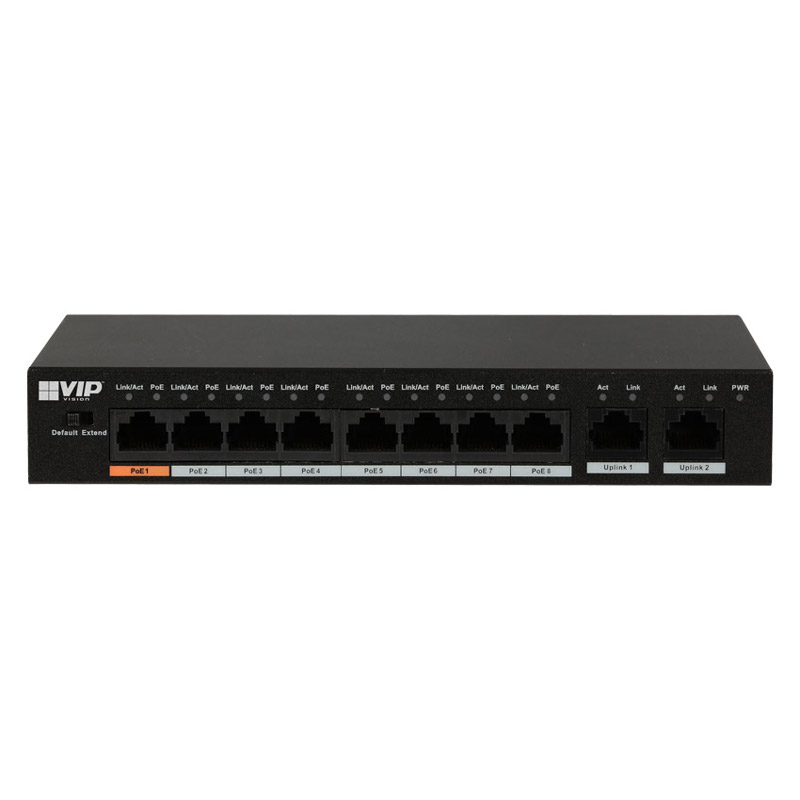

8-port Unmanaged Fast Hi-PoE Ethernet Switch
Model:VSPOE-SWA8G

Overview

The VSPOE-SWA8G is a desktop mount, fast Hi-PoE switch in 8 ports. It is ideal for building secondary networks - providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.

• 7 x PoE+ device ports with 100Mbps per port
• 1 x Hi-PoE device port with 100Mbps per port
• 2 x 1000Mbps Gigabit RJ45 (Base-T) uplink ports
• Total PoE power load up to 96W
• Extend mode takes Ethernet cable runs up to 250m
• Unmanaged switch for plug & play applications
• Desktop mount for home and SOHO use
• Professional appearance full metal enclosure
Specifications
Device Ports 8 x 10/100 Base-T (PoE power supply ports)
DHCP N/A
Dimensions 190 x 100 x 42mm
Exchange Mode Store & forward
Extend Mode Up to 250m range at 10Mbps (all ports via device switch)
Flow Control N/A
Input Power 48 ~ 57VDC
Lightning Protection Common Mode 2kV / Differential Mode 0.5kV
LLDP N/A
MAC Address Capacity 2K
Mounting Options Desktop
Network Management N/A
Network Time Protocol N/A
Operating Environment -10° ~ 55°C / RH90% (max)
Packet Forwarding Rate 4.17Mbps
PoE Yes
PoE Management N/A
PoE Protocol PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE
Port Aggregation N/A
Port Mirroring N/A
Ports 8 ports
Quality of Service N/A
Security Features N/A
Spanning Tree Protocol N/A
Speed Fast 10/100
Switch Management Unmanaged
Switch Power Load Port 1: ≤60W / Port 2-8: ≤30W / Total: ≤96W
Switching Capacity 5.6Gbps
System Maintenance N/A
Uplink Ports 2 x 10/100/1000 Base-T
Virtual LAN N/A
Weight 0.49kg
Warranty (Years) 4
Downloads
VSPOE-SWA Series Product Datasheet (PDF)
